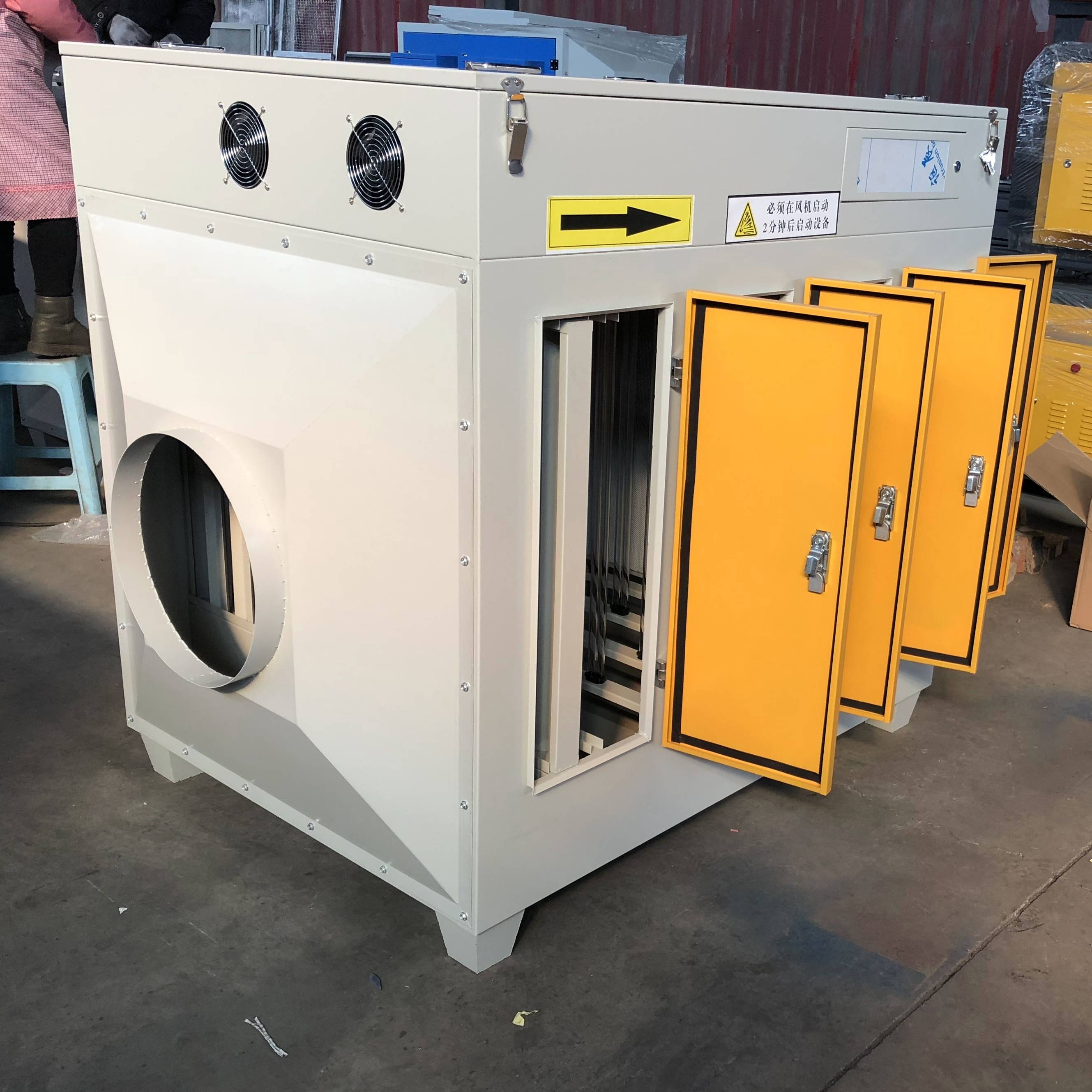

UV Ultraviolet Photocatalyst Exhaust Deodorizer
UV photocatalytic equipment is an efficient waste gas treatment device, which is widely used in the field of industrial waste gas treatment through the combination of UV photolysis technology and catalytic oxidation technology to decompose the harmful substances in the waste gas. It is especially suitable for removing odour, volatile organic compounds (VOCs) and some toxic and harmful gases, such as benzene, toluene, xylene, hydrogen sulphide, ammonia and so on.
1. Working principle
The working principle of UV photocatalytic equipment mainly includes the following stages:
(1) UV photolysis
The high-energy ultraviolet lamps inside the equipment emit ultraviolet light with wavelengths of 185nm and 254nm, which directly destroys the chemical bonds in the molecules of the exhaust gas and breaks down the large-molecule pollutants into small-molecule compounds. For example, the benzene ring is decomposed into CO₂ and H₂O.
(2) Ozone oxidation
UV light can also break down oxygen molecules (O₂) in the air to form highly reactive ozone (O₃). Ozone is a strong oxidising agent that can further oxidise harmful substances in exhaust gases and convert them into non-toxic and harmless substances.
(3) Catalytic oxidation
The interior of the equipment is usually equipped with a catalyst coating or filler (e.g., titanium dioxide TiO₂), which, through the excitation of ultraviolet rays, forms highly active free radicals, further accelerating the degradation of hazardous substances in the exhaust gas.
(4) Discharge to standard
After the above treatment, the exhaust gas is converted into harmless substances such as carbon dioxide and water, and meets the environmental emission standards.
2. Application Fields
UV photocatalytic equipment is widely used in many industries, mainly used to deal with places containing odours and organic exhaust gases:
Spraying industry: benzene, toluene and other exhaust gases produced by spraying workshop.
Chemical industry: VOC waste gas and odour gas emitted during the production process.
Pharmaceutical industry: complex exhaust gases emitted during the production of pharmaceuticals.
Printing industry: Harmful gases from ink and solvent evaporation.
Food processing industry: odours from e.g. smoking, frying and baking processes.
Waste treatment plants: odours from waste decomposition, composting, etc.
3. Specification
| Item | Specification | Remark |
| Model | UV-C1000, UV-C3000, UV-C5000 | Selection according to the handling air volume |
| Air Volume | 1000～100,000 m³/h | Customzied |
| Shell Material | Stainless steel, carbon steel spray moulding | Selectable for corrosive gases |
| UV Lamp Power | 100W/pc, 200W/pc, 300W/pc | Selection according to equipment type and exhaust gas concentration |
| The Number of UV Lamp | 8~50 pcs | Depends on the size of the equipment |
| UV Lamp Lifetime | 8000～12000 hours | Regular inspection and replacement is recommended |
| Catalyst materials | Titanium dioxide (TiO₂), precious metal catalysts, etc. | Enhanced catalytic oxidation |
| Equipment resistance | <300pa | / |
| Exhaust gas removal efficiency | ≥90% (VOCs, odours, etc.) | Depends on the concentration and type of exhaust gas |
| Operating temperature range | -10℃～50℃ | Optional anti-freeze or thermal insulation |
| Voltage | 380V/50hz, 220V/60hz | / |
| Noisy | ≤70 dB(A) | / |
| Installation | Indoor or outdoor, horizontal mounting | / |
| Protection class | IP54/IP65 | / |
| Footprint | Customzied | / |
| Operating method | PLC/Manual | / |
| Maintenance cycle | Check UV lamp and catalyst status every 3 to 6 months | Adjusted for frequency of use |
| Usage Scenarios | Chemical, pharmaceutical, painting, spray booths, food processing, waste disposal | / |
4. FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
Q: What certificates do you have?
A: ISO / SGS
